Brass Strip Connectors
600-800 INR/Kilograms
Product Details:
- Feature Corrosion Resistant, High Conductivity
- Connector Type Strip Connector / Terminal Block
- Shape Rectangular Strip
- Efficiency 99% Conductivity
- IP Rating IP20
- Power Factor N/A (passive component)
- Insulation Material PVC / Bakelite Base
- Click to View more
X
Brass Strip Connectors Price And Quantity
- 600-800 INR/Kilograms
- 600.00 - 800.00 INR/Kilograms
- 100 KG Kilograms
- Available as per drawing/specification
- Standard 0.5 to 2 Nm as per pole size
- Steel/Zinc-plated/Brass
- 2.5 kV for 1 min
- Box/Carton packing
- High rust resistance, suitable for humid environments
- 100 Pieces
- 100% Electrical & Dimensional Tested
- Complies with IS, RoHS
- 0.5 mm² to 35 mm²
Brass Strip Connectors Product Specifications
- Single / Three Phase Compatible
- Up to 95% Non-Condensing
- -10C to +80C
- Standard Electrical Insulation
- Up to 440 V
- High-Grade Brass
- Screw/Terminal Mount
- Varies by model (e.g., 120mm x 15mm x 10mm)
- N/A (passive component)
- Terminal Connection
- Strip Connector
- Panel/DIN Rail Mount
- Polished / Nickel Plated
- PVC / Bakelite Base
- 99% Conductivity
- 1 to 12 Poles
- 50/60 Hz
- Golden Brass
- IP20
- Multiple Sizes Available (10A to 63A)
- Approx. 15-40 grams (varies by size)
- Negligible (passive component)
- Electrical Distribution / Connection
- Up to 440 V
- Corrosion Resistant, High Conductivity
- Strip Connector / Terminal Block
- Rectangular Strip
- Available as per drawing/specification
- Standard 0.5 to 2 Nm as per pole size
- Steel/Zinc-plated/Brass
- 2.5 kV for 1 min
- Box/Carton packing
- High rust resistance, suitable for humid environments
- 100 Pieces
- 100% Electrical & Dimensional Tested
- Complies with IS, RoHS
- 0.5 mm² to 35 mm²
Brass Strip Connectors Trade Information
- 300 Kilograms Per Day
- 1 Week
Product Description

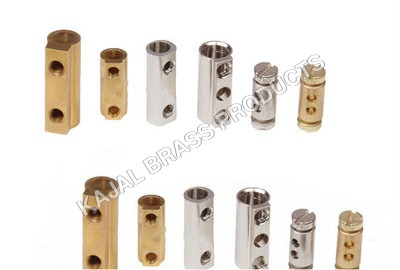

Brass Strip Connectors
Brass Strip Connectors manufactured and supplied by us can be used in earthing applications to make connections with the conductors via which stray current flow to the system. It is machined with high precision and accuracy that makes it free from manufacturing flaws. The surfaces of this component are coated with a smooth and shiny non-corrosive coat that gives excellent protection from rust and corrosion. Buy from us premium-class Brass Strip Connectors in large quantities with an assurance of fast and safe delivery.
Specification
| Brand | Kajal Brass Products |
| Material | Brass |
| Finishing | Polished |
| Packaging Type | Box |
High Performance and Durability
These brass strip connectors feature superior conductivity and robust corrosion resistance, making them ideal for demanding and humid environments. Their polished or nickel-plated finish and stringent quality control ensure a dependable connection and long service life, even under heavy use.
Flexible Customisation Options
Connectors can be customised to meet specific requirements, accommodating different sizes, pole numbers, and technical specifications as per your drawings. This flexibility allows seamless integration with various electrical systems, enhancing both efficiency and utility.
Easy Installation and Safety
Designed with standard screw/terminal mount connections and an IP20-rated enclosure, these connectors are simple to install on panels or DIN rails. The use of durable insulating basesPVC or Bakeliteprovides additional safety, supporting up to 2.5 kV dielectric strength for secure operation.
FAQs of Brass Strip Connectors:
Q: How can I select the right size and type of brass strip connector for my application?
A: To select the appropriate connector, consider the conductor size required (0.5 mm to 35 mm), rated current (10A to 63A), number of poles, and mounting method (panel or DIN rail). Customisation is available to match specific dimensions or electrical requirements as per your drawing.Q: What standards do these brass strip connectors comply with?
A: Our connectors comply with IS (Indian Standards) and RoHS directives, ensuring they are suitable for safe and environmentally friendly electrical installations across diverse applications.Q: When should brass strip connectors be used in electrical systems?
A: Brass strip connectors are recommended for use in electrical distribution or terminal block connections, particularly where reliable, high-conductivity, and corrosion-resistant solutions are criticalsuch as in panels, control boards, and power distribution units.Q: Where can these connectors be installed and in what environments?
A: These connectors are suitable for installation in industrial, commercial, and residential settings. With high rust resistance and up to 95% non-condensing humidity tolerance, they perform reliably even in humid or challenging environments.Q: What does the testing process involve for these connectors?
A: Every connector is 100% electrically and dimensionally tested to ensure consistent performance, meeting dielectric strength requirements of up to 2.5 kV for 1 minute and verified for dimensional accuracy and connection integrity.Q: How does the customisation process work for bespoke requirements?
A: You can provide your drawings or detailed specifications. Our manufacturing team will develop connectors tailored to your needs, covering aspects like pole number, mounting type, and insulation material, ensuring a precise fit for your application.Q: What are the main advantages of using brass strip connectors?
A: Main benefits include high electrical conductivity (up to 99%), robust corrosion resistance, flexible mounting options, easy installation, and compatibility with single or three-phase electrical systems, ensuring safe and efficient connections every time.Tell us about your requirement
